Product ID：35
Product Model：
Shelf time：2025-04-11 23:16:16

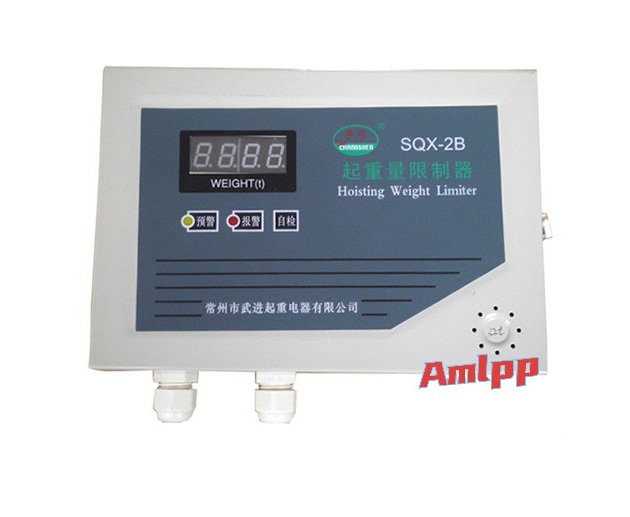

Product description：1.SQX-2B lifting weight limiter is composed of two parts: sensor and electrical control instrument. It is a safety protection device widely used in cranes door cranes and hoisting equipment. The main technical indicators of the limiter are
| No | name and model | skills requirement |
| 1 | Precision | Display accuracy≤5%F, S, action error≤3%F, S (full load) |
| 2 | Pre-alarm | 90% of the rated lifting capacity will give an audible and visual alarm |
| 3 | Delayed alarm | 105% of the rated lifting capacity continues to sound and light alarm, delay 1-2 seconds relay action, cut off the lifting power supply. |
| 4 | Call the police immediately | The 130% relay of the rated lifting capacity will act immediately to cut off the lifting power supply. |
| 5 | Power supply | 220V or 380VAC, 50Hz |
| 6 | working environment | -20% ~ +60%, ≤90%RH. |
| 7 | Protection level | The sensor is IP65 and the instrument box is IP42. |
| 8 | Sensor overload capacity | 1.5 times the rated lifting capacity. |
